Dataset Title:	OCNMS - Makah Bay: ADCP - Currents Data
Institution:	Olympic Coast NMS (Dataset ID: ocnms_mb42_lander_adcp)
Information:	Summary \| License \| Metadata \| Background \| Data Access Form \| Files

To work correctly, this web page requires that JavaScript be enabled in your browser. Please:
1) Enable JavaScript in your browser:
      • Chrome: "Settings : Advanced : Privacy and security : Site Settings : JavaScript"
      • Firefox: (it should be always on!)"
      • Opera: "Settings : Websites : JavaScript"
      • Safari: "Safari : Preferences : Security : Enable JavaScript"
2) Reload this web page.

Graph Type:
X Axis:
Y Axis:
Color:

Dimensions

Start

Stop

time (UTC)

depth (m)

Graph Settings
Color Bar:	Continuity:	Scale:
Minimum:	Maximum:	N Sections:
Y Axis Minimum:	Maximum:

(Please be patient. It may take a while to get the data.)

Optional:
Then set the File Type: (File Type information)
and

or view the URL:
(Documentation / Bypass this form

)

Time range:

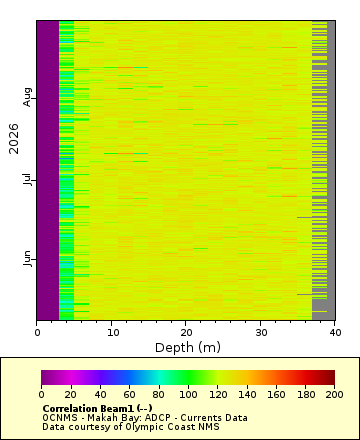

[The graph you specified. Please be patient.]
